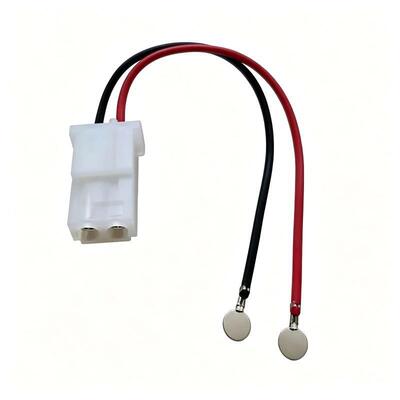

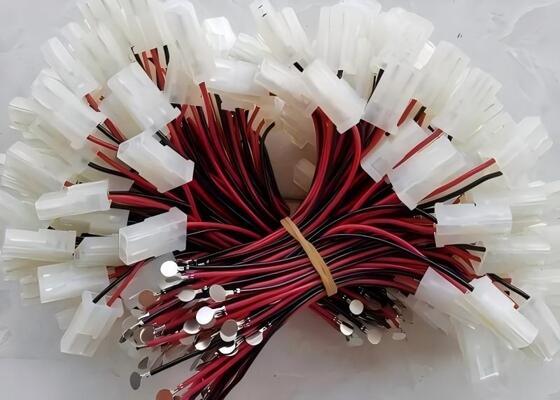

OEM Custom Molex/PH/XH 2 Pin Connector Wiring Harness | Tinned O Ring Terminal Cable for Electronic Equipment | China Factory Direct Pricing
Custom Wire Harness Manufacturer
Unitech is one of custom wire harness manufacturer and supplier in China. We can provide professional service and better price for you. If you interested in custom wire harness, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
If you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.
Wire Harness Attributes
| Product Name |
Custom Wire Harness with Molex, PH & XH Connectors |
| Connector Series |
Molex, PH 2.0mm pitch, XH 2.5mm pitch; male / female housing optional |
| Pin Count |
2P ~ 12P customizable |
| Conductor |
Tinned stranded copper |
| Insulation |
PVC, Silicone, UL1007, UL1571 optional |
| Wire Gauge |
20AWG ~ 26AWG customizable |
| Wire Length |
Customized per customer drawing |
| Application |
Industrial automation, BMS battery module, medical equipment, LED driver, telecom hardware, power tool, PCB wire-to-board interconnection |
| Service |
OEM & ODM, sample development, mass production |
Key Benefits of the Wire Harness
- This custom cable assembly supports Molex original or compatible connectors, plus PH 2.0mm and XH 2.5mm pitch connectors, delivering stable wire-to-board connections for PCBs, sensor modules and battery control assemblies.
- Multiple pin configurations, housing genders, wire gauges and cable lengths are available to match your board layout and mechanical assembly requirements.
- Terminals are crimped by automated crimping machines to ensure consistent crimp geometry, low contact resistance and reliable performance under vibration.
- We can supply genuine Molex parts or equivalent compatible housings and contacts. All raw materials comply with RoHS for industrial OEM and electronic manufacturing projects.
- Each finished harness undergoes 100% continuity and pull force testing before shipment to maintain stable batch quality for volume production.
Customization Capability
Our custom wire harness and cable assembly can be customized to your exact specifications:
• Conductors: Custom AWG tinned copper wire
• Insulation: PVC or silicone material for different temperature ranges
• Connectors: Custom power and signal connector combinations
• Mechanical: Custom cable length, shielding, strain relief and tolerances
• Finishing: Heat shrink, wire bundling, laser marking and custom labeling
• Production: Prototype sampling, pilot runs and high-volume OEM manufacturing
FAQ
1: Do you use original Molex connectors or compatible equivalents?
A: Both options are available. We can source authentic Molex components or provide cost-effective compatible housings and terminals based on your project budget and specification requirements.
Q2: What is the pitch for PH and XH connectors?
A: PH connector is 2.0mm pitch, XH connector is 2.5mm pitch. We support various pin counts for both series.
Q3: What wire insulation choices can I select?
A: Standard PVC for general electronics; UL1007 / UL1571 for PCB internal wiring; silicone wire for high-temperature or flexible applications.
Q4: Can you build custom pin assignments and wire color sequences?
A: Yes. We follow your pinout diagram, wire color schedule and assembly drawing for customized harness production.
Share your connector type, pin count, wire gauge, cable length and pin assignment drawing with our engineering team. Request a custom quotation and free DFM review. Our team replies within 24 business hours with production feasibility feedback. No obligation for your consultation
