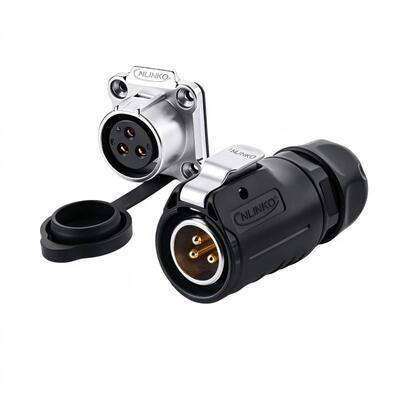

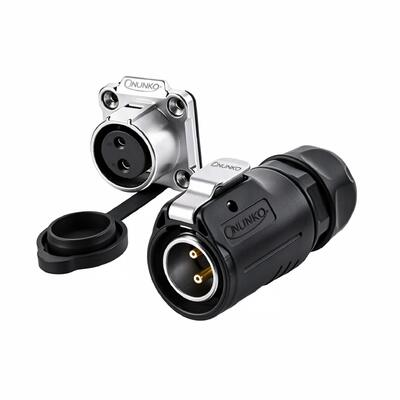

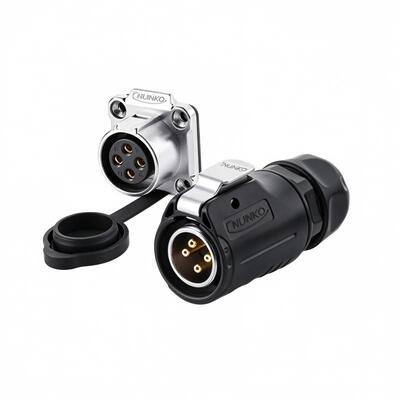

Industrial Waterproof Circular Power Connector | CNLINKO Panel Mount Male Female Circular Connector

Factory Direct | LP20 2-5 Pin IP67 Waterproof Circular Aviation Connector, 20A Panel Mount Male Female Power Plug for Industrial Equipment | Made in China





Unitech Company Introduction:

Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.

Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.

Wire Harness Specification:

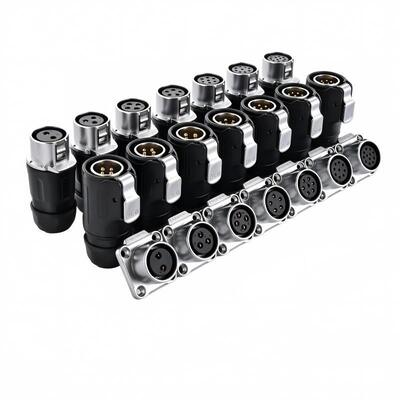

Reliable power and signal connections in harsh environments are critical for industrial equipment. Our CNLINKO LP20 circular waterproof connectors deliver IP67 dust and water resistance, robust quick-lock latching, and multiple pin options from 2 to 12 cores. Designed for panel flange mounting, this aviation connector series supports stable power & signal transmission for AGV robots, lithium battery packs, outdoor lighting, industrial cleaning machines and new energy systems. Factory direct supply with custom cable assembly and pin configuration available for your OEM & ODM projects.



Key Features of the Wire Harness:

1. IP67 waterproof rating, works reliably in damp, dusty outdoor environments
2. Bayonet twist locking design, fast plug-in and anti-loosening under vibration
3. Gold-plated contact pins, excellent conductivity, anti-oxidation & long service life
4. Comes with rubber dust cap to protect the socket when not in use
5. Panel mount flange, easy to fix on equipment cabinet / battery enclosure

FAQ

Q1: What is the protection level of LP20 connector?

A: IP67 when fully mated. It can resist temporary immersion and complete dust ingress. Not for continuous underwater use.

Q2: Can I customize the pin number and pre-wired cable assembly?

A: Yes. We offer all LP20 pin versions. Custom wire harness with specified cable gauge and length is supported for bulk orders.

Q3: What is the mounting cutout size for the flange socket?

A: LP20 4-hole flange mount, standard panel cutout available in our drawing datasheet. Contact our engineering team for CAD files.

Q4: Is this connector resistant to vibration for mobile equipment like AGV?

A: Yes. The metal snap lock keeps the plug firmly engaged under vibration and mechanical impact, ideal for mobile robots and industrial vehicles.

Q5: What is your MOQ and lead time?

A: Small sample orders are acceptable. Bulk production lead time depends on quantity and custom requirements. Email us to get a formal quotation.



Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.




Need CNLINKO waterproof circular power connector or pre-assembled cable harness? Share your pin quantity, current rating and wiring specs. Our engineering team will prepare quotation and sample plan promptly.
