Unitech Company Introduction:

Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.

Please contact us if you need any help on wire harness, all can be made as your requirement.

Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.

Core Technical Specifications:

Appearance & Core Structure:

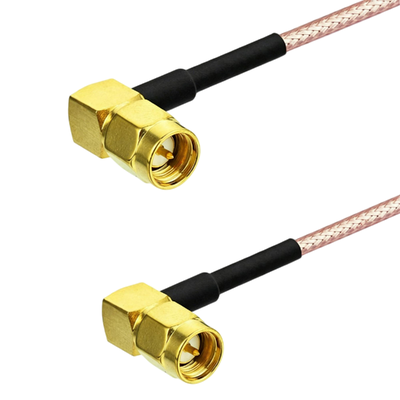

• Connector Specs: Both ends feature SMA male connectors (male pin, female thread) with a 90° right-angle design, perfectly fitting space-limited device installations and avoiding signal loss or connector damage caused by sharp cable bends. The gold-plated brass connectors offer excellent conductivity, corrosion resistance, and oxidation resistance for consistent long-term performance.

• Cable Specs: Uses RG316 flexible RF coaxial cable with a tinned copper braid shield and transparent FEP insulation layer. It provides superior EMI shielding, effectively blocking external electromagnetic interference, while remaining highly flexible for easy routing and installation.

• Strain Relief: Black heat-shrink tubing reinforces the connection between the connector and cable, enhancing tensile strength, preventing cable breakage, and adding insulation protection for extended service life.

Highlights:

• Gold-Plated SMA Right-Angle Design: 90° elbow fits tight installation spaces perfectly, with gold-plated connectors for oxidation resistance, excellent conductivity, and consistent long-term signal performance.

• High-Performance RG316 Cable: Flexible, high-shielding coaxial cable with low signal loss, strong EMI resistance, and wide temperature range for use in harsh environments.

• Industrial-Grade Durability: Reinforced connector-cable junction for enhanced tensile strength and bend resistance, ensuring long service life even with frequent use.

• High Customization Flexibility: Fully customizable cable length and connector type for plug-and-play compatibility with nearly all RF equipment.

Important Notes:

• Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

• Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

• Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

• Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
