Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China

Large Image : Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China

Product Details:

Place of Origin:	China
Brand Name:	Unitech
Certification:	CE ROHS
Model Number:	UT C563

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD, NegotiableMR30
Packaging Details:	1000pcs per bag, carton for outsdie packing
Delivery Time:	7-10 day
Payment Terms:	T/T, Western Union
Supply Ability:	200000pcs/Month

Contact Now

Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China

Description

Category:	Male / Female Wire Harness	Key Feature:	Custom Wiring Harness
Professional In:	Wire Connector Harness	Colour:	Red / Black Can Be Customized
Application:	WiFi Router, Bluetooth Module, Zigbee, IoT Device, Drone Antenna Certification RoHS Compliant	Product Name:	IPEX/U.FL To SMA Flange RF Cable,RG1.13 Low Loss

Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China

Unitech Company Introduction:

Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.

Please contact us if you need any help on wire harness, all can be made as your requirement.

Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.

Product Specification:

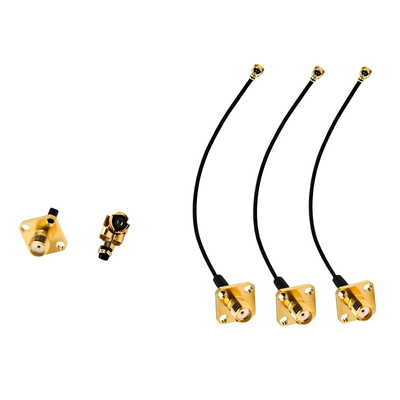

Product Name	RG1.13 IPEX/U.FL to SMA Flange RF Coaxial Cable Assembly
Connector 1	IPEX/U.FL Female (IPEX 1st Gen)
Connector 2	SMA Female with 4-Hole Flange (Panel Mount)
Frequency Range	DC ~ 6GHz
Cable Length	25mm / 35mm / 50mm (Customizable)
Application	WiFi Router, Bluetooth Module, Zigbee, IoT Device, Drone Antenna
Key Features	Low Signal Loss, High Temperature Resistant, Corrosion Resistant
Impedance	50 Ohm
Connector Material	Gold-Plated Brass
Engineering service	OEM and ODM service ,2D drawing
Quality Control	1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection
Samples	1.Samples confirmed first before mass production 2.Samples for free
MOQ	Small Order Can Be Accepted
Package	Inner:plastic bag outer:standard export cartons or custom package

Wire Harness and Cable Features:

✅ Standard RF Connectors: Features an IPEX/U.FL female connector for PCB modules and an SMA female with 4-hole flange for panel mounting, ideal for external antenna installation.

✅ Low-Loss RG1.13 Cable: Made of high-quality RG1.13 coaxial cable, providing low signal attenuation up to 6GHz, perfect for WiFi, Bluetooth, and other wireless signals.

✅ Durable Gold-Plated Connectors: Gold-plated brass contacts ensure excellent conductivity and corrosion resistance, maintaining stable signal transmission over time.

✅ Space-Saving Design: Ultra-thin RG1.13 cable allows flexible routing in compact devices like routers, cameras, drones, and IoT modules.

✅ Versatile Applications: Suitable for extending antenna connections on WiFi adapters, Bluetooth modules, Zigbee devices, and other wireless communication equipment.

We can produce series of wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China

Wiring Harness Information:

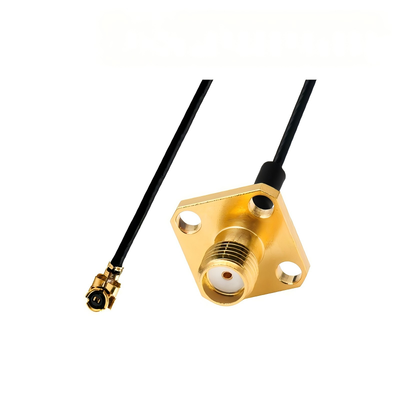

IPEX to SMA Flange Design: Converts a compact IPEX/U.FL connection to a standard SMA interface, making it easy to add or replace external antennas.

Low-Loss RG1.13 Cable: The high-quality coaxial cable minimizes signal loss, supporting frequencies up to 6GHz for stable WiFi, Bluetooth, and other RF signals.

Gold-Plated Connectors: Gold-plated brass contacts offer superior conductivity and corrosion resistance, ensuring long-term reliable performance.

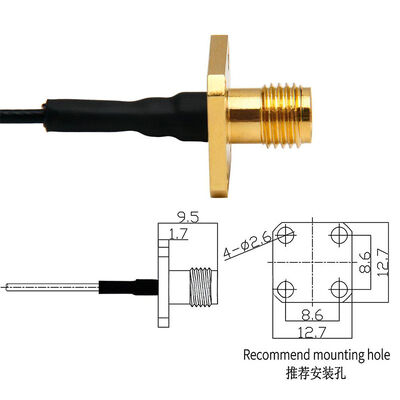

4-Hole Panel Mount Flange: The SMA female connector with 4-hole flange can be securely mounted on device enclosures for a stable connection.

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.

Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | Wire Harness Supplier China
