Flexible Custom Wire Harness | Factory Custom Length PH2.0 7P 24AWG Tinned Copper Twisted Wire Harness for 3D Printer | Made in China
| Name |

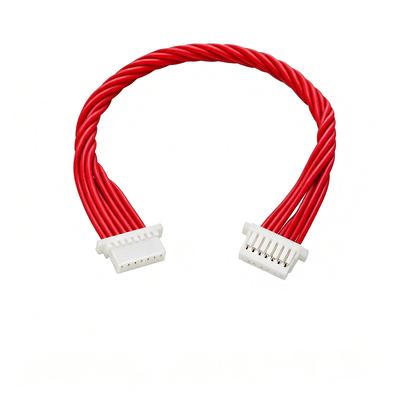

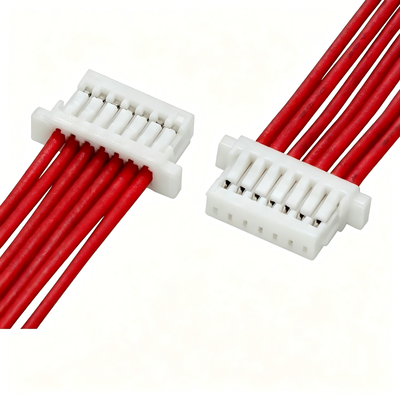

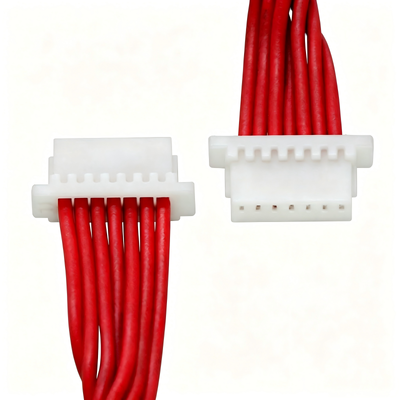

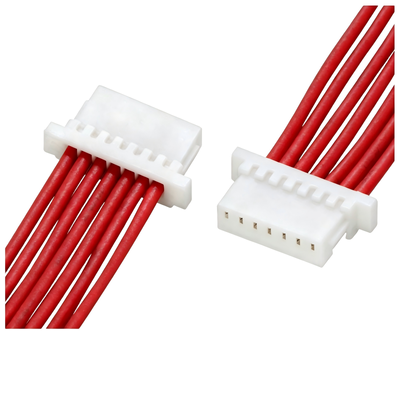

Custom PH2.0 7P Twisted Red Male Female Cable Assembly |
| Series Model |
PH2.0 |
| Pin Quantity |
7Pin |
| Signal Output Terminal |
PH2.0 pitch 2P white plastic housing, dual independent signal plugs |
| Inner Wire |
Automotive flame-retardant PVC wire, 4 color cores: Black, Red, Blue, Green |
| Rated DC Voltage |
AC 250V |
| Rated Current per Pin |
3A |
| Operating Temp Range |
-30℃ ~ +105℃ |
| Insulation Material |
PVC |
| Conductor Construction |
Multi-strand flexible copper wire |
| Application |
Lithium Energy Storage Products,Industrial Control & Mini Testing Instruments |
| Engineering service |
OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test
2. 100% crimp inspection
3. 100% size inspection
4. 100% visual inspection
|
| Samples |
1.Samples confirmed first before mass production
2.Samples for free
|
| MOQ |
Small Order Can Be Accepted |
| Package |
Inner:plastic bag outer:standard export cartons or custom package |
Core Functional Advantages:
✅ Twisted wire structure effectively reduces electromagnetic interference, ensures stable tiny signal transmission without attenuation
✅ Barb lock plug design, anti-loose connection under continuous vibration of motors and instruments
✅ Fool-proof anti-reverse slot to prevent wrong polarity and circuit damage
✅ Tinned copper conductors avoid oxidation and simplify PCB soldering operation
✅ Flame retardant plastic housing and PVC wire improve safety for long-time continuous operation

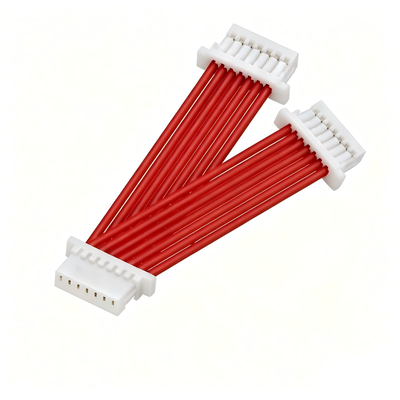

✅ Three optional styles to meet loop wiring, straight extension and offset installation demands
✅ Slim soft twisted wire, fits narrow internal space of mini electronic devices
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
Customized electrical wire harness connectors: we produce custom solutions for all industries and applications
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
All Wire Harnesses will be custom made as your drawing ans specifications
Sample Prototype, Trial Order will be welcome!
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
