Flexible Custom Wire Harness | Dual End Flange Mount IEC C8 Figure 8 Female Socket Wiring Harness for Electric Scooter | Made in China Factory

Flexible Custom Wire Harness | Dual End Flange Mount IEC C8 Figure 8 Female Socket Wiring Harness for Electric Scooter | Made in China Factory

Key Features:​

• Panel embedded flange mounting design

Two side fixing lugs with screw holes, easy to lock on equipment shell, firm installation without shaking during long-term vibration.

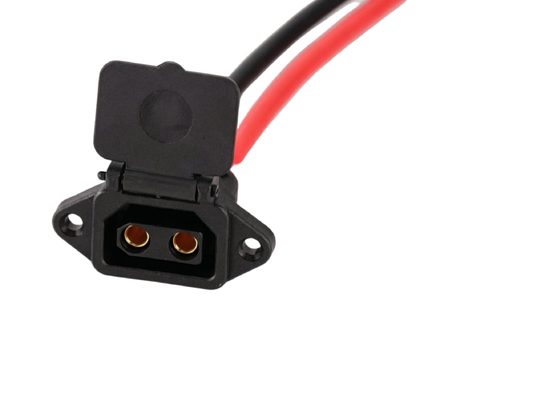

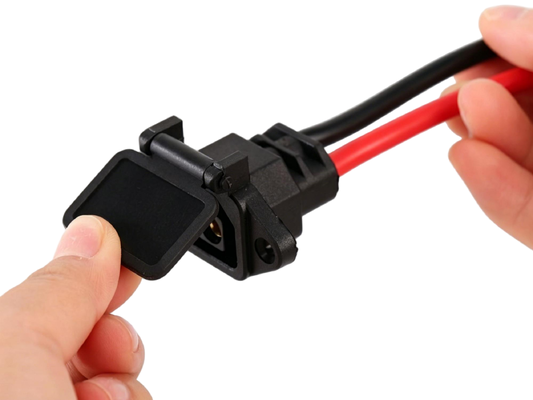

• Built-in dustproof flip cover protection

Self-closing cover blocks dust, water mist and foreign matter, extend service life of internal conductive pins, improve safety.

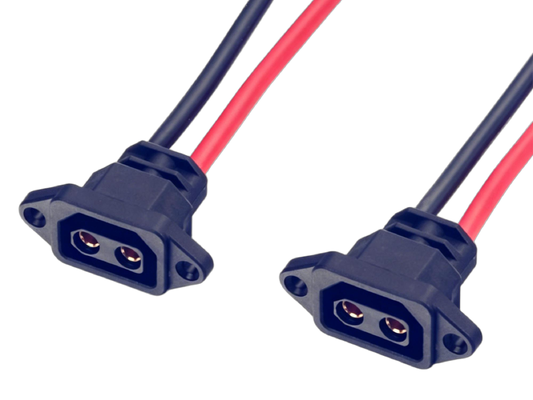

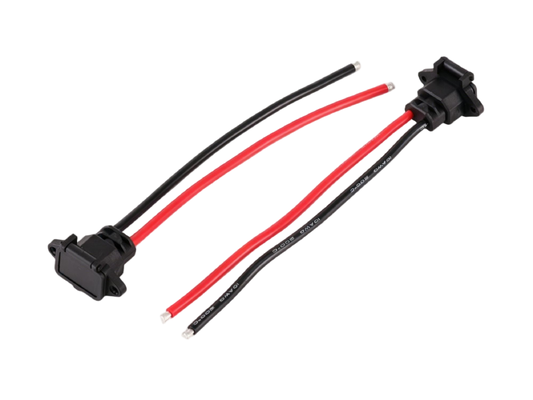

• Double-ended identical socket symmetric layout

Both ends adopt the same C8 female connector, realize power extension between two devices, battery compartment internal and external power transfer.

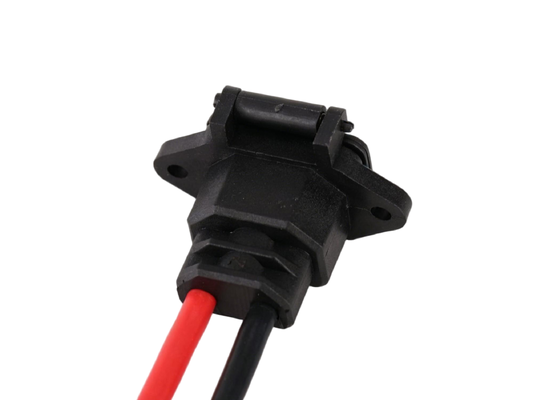

• Integrated injection anti-break strain relief

Wire outlet and socket body are injection molded as a whole, avoid wire core fracture caused by frequent pulling and bending.

• High load large current performance

10AWG thick wire matches gold-plated thick pins, support 15A continuous charging, ideal for energy storage and electric vehicle power supply.

• Clear polarity color separation

Red positive and black negative wire distinguish power poles, effectively prevent reverse connection damage to battery and power board.

We can produce series of wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

Unitech’s Core Customization Capabilities Include:

Cable Harnesses & Assemblies | Custom Cable Assemblies | Cable Harness Manufacturers | Cable Assemblies | Electrical Harnesses | Cable Assembly Design | Cable Assembly Manufacture | Cable Harness Assembly | Custom Wiring Solutions | Custom wiring solutions manufacturers | Electrical Harness | Cables For Battery | Wires And Connectors | Wiring Harness Manufacturers | Custom Cable | Electrical Harness Manufacturers | Cable Harness Supplier | Cable Connectors

Product family Tree and Custom Wiring Solutions Range:

We have full series harness cable assembly product for your choice, the connectors are cover brand JST Molex JAE HRS TE Detch or its' equivalent, we can produce:

Custom UL Electronic Wire Harness | Industrial Wire Harness | New Energy Wire Harness | Communication Wire Harness | Consumer Electronics Wire Harness | Medical Wire Harness | Aerospace Wire Harness | Household Appliances Wire Harness | Battery Pack Wire Harness

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
