China Custom Cable Assembly Manufacturer | Terminal Wire Harness | XH2.54 Tinned Copper Anti-Reverse Lock Extension Wire Harness for RC Drone
| Name |

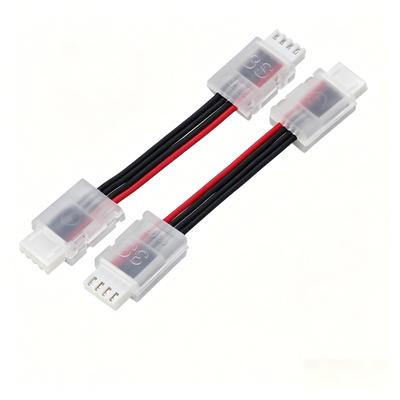

Factory Custom Length XH2.54 4Pin Male Female Balance Extension Cable Assembly |
| Connector Model |
XH 2.54mm |
| Pin Count |
4 pin |
| Standard Wire Model |
AWM1007 PVC electronic wire |
| Rated DC Voltage |
DC 100V |
| Operating Temp Range |
-30℃ ~ 105℃ |
| Wire Color Matching |
1 red wire (positive sampling) + 3 black wires (negative sampling), total 4 cores |
| Insulation |
PVC |
| Application |
RC Aircraft & UAV Industry, Remote Control Vehicle & Vessel, Portable Power & Car Emergency Tools |
| Engineering service |
OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test
2. 100% crimp inspection
3. 100% size inspection
4. 100% visual inspection
|
| Samples |
1.Samples confirmed first before mass production
2.Samples for free
|
| MOQ |
Small Order Can Be Accepted |
| Package |
Inner:plastic bag outer:standard export cartons or custom package |
Core Functional Advantages:

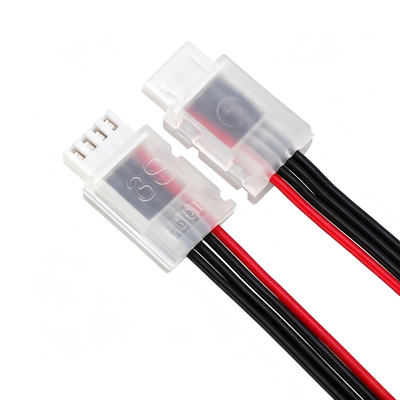

- Transparent housing with 2S-6S marking for quick battery matching & visual inspection

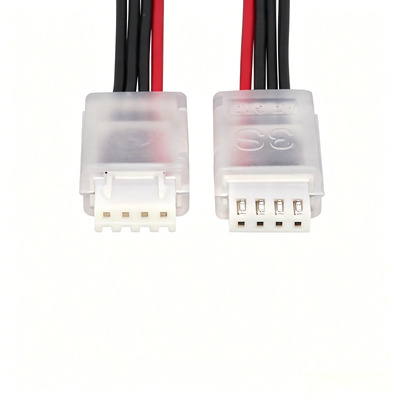

- Anti-reverse fool-proof plug avoids short circuit and burnt BMS boards
- Built-in barb lock prevents loose connection under vibration
- Tinned copper wires deliver accurate, stable cell voltage sampling

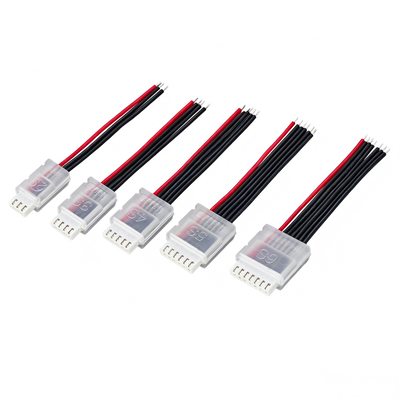

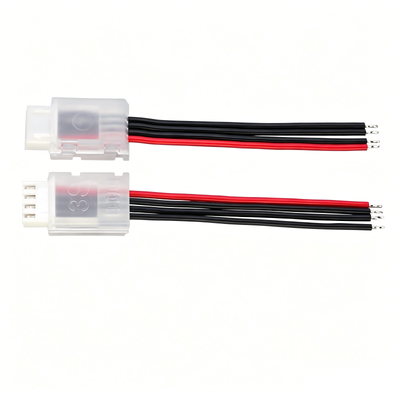

- Two styles: bare wire for welding, male-female plug for extension maintenance
- UL94-V0 flame retardant wire & housing improve lithium battery safety
- Wide temp resistance (-30℃~105℃) for all-weather outdoor use
- Low electromagnetic interference for reliable weak signal transmission
- Durable terminals with ≥800 mating cycles, flexible anti-break wires
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
Customized electrical wire harness connectors: we produce custom solutions for all industries and applications
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
All Wire Harnesses will be custom made as your drawing ans specifications
Sample Prototype, Trial Order will be welcome!
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
