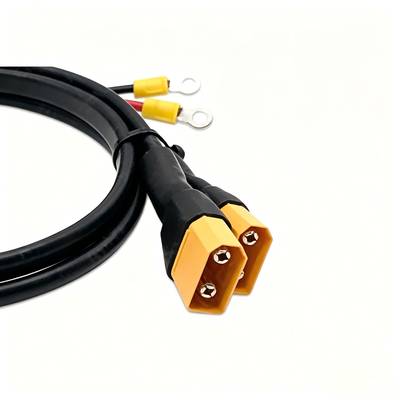

Custom Wiring Harness | Factory Custom XT60 Female to O Ring Terminal Wire Harness for FPV heavy-lift drone | China Wire Harness Factory

Custom Wiring Harness | XT60 Female to XH2.54 2P Twisted Pair Conversion Cable Assembly for FPV Drone Flight Controller | China Wire Harness Factory

Key Features:​

• XT60 Female Connector Side

1. Shell: Yellow flame-retardant PA66 nylon, integrated black molded strain relief to prevent wire cracking
2. Internal terminal: Thick gold-plated brass, ultra-low contact resistance
3. Electrical rating: Continuous 40A, peak instantaneous 60A, DC 500V
4. Anti-reverse foolproof slot design to avoid positive-negative short circuit
5. Joint sealed with thick heat shrink tubing for insulation and anti-abrasion

• Ring Terminal Lug Side

1. Terminal: Silver-plated copper circular O-ring lugs, available in M4/M5/M6/M8 hole sizes for bolt fixation
2. Insulation: Yellow PVC heat shrink sleeve fully covers metal terminal to prevent accidental short circuit
3. Wire color coding: Red wire = Positive (+), Black wire = Negative (-), clear polarity distinction
4. Firm crimp connection between wire and ring lug, strong pull resistance

• Cable Body

1. Wire type: High flexible high-temperature silicone wire (thick gauge for heavy current)
2. Outer insulation: Black silicone rubber, wide temperature resistance
3. Neat parallel double-core layout, bundled with cable tie for tidy storage

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

Unitech Cable is an outstanding partner for any company that requires custom cable or wire harness assemblies.Our cable assembly and wire harness capabilities support OEMs across multiple sectors. We understand the regulatory, performance, and quality requirements unique to each industry,so that we can meet your requirements.If you want to learn more details please contact us email:Olinda@unitechelectronic.com.

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
