Custom AMP Superseal 1.5 2Pin Red Black Waterproof Wiring Harness | Automotive Waterproof Connector Cable for Car LED Light | China Wiring Harness Factory
Unitech Company Introduction:
Custom Wire Harness Manufacturer
We are a trusted custom wire harness manufacturer specializing in engineered cable assemblies for diverse industries including automotive, medical, aerospace and telecommunications. Our custom harnesses consolidate messy multi-wire systems to boost reliability and simplify assembly for your equipment. Every cable assembly is built to strict industry standards to fit your custom design and production goals.
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.
Product Explanation:

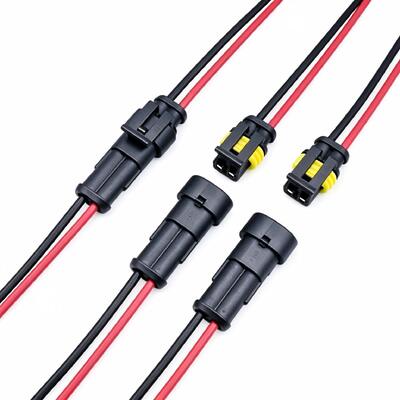

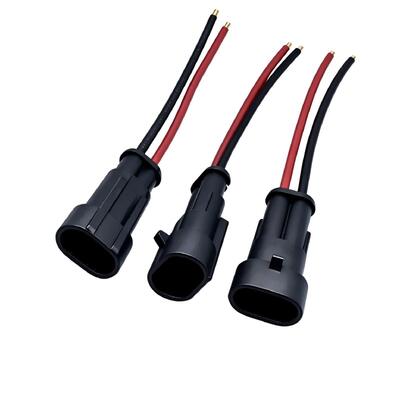

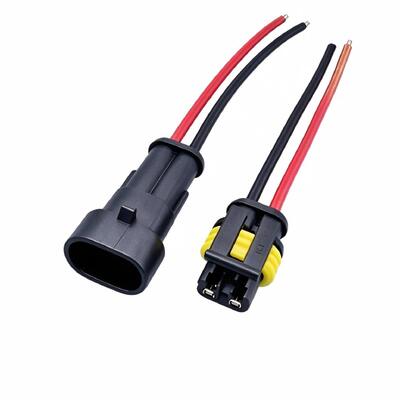

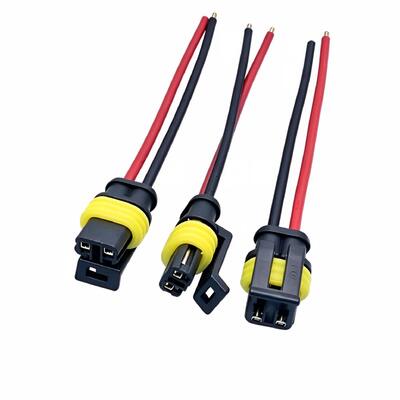

This is a 2Pin AMP waterproof wire harness (AMP Superseal 1.5 series). One end is crimped with AMP 2 pin waterproof connector with yellow rubber sealing ring, the other end is stripped and tinned. It adopts red and black wires for positive and negative polarity identification. The connector has excellent waterproof performance, widely used in automotive lighting, motorcycle, truck, agricultural machinery, outdoor equipment and vehicle battery wiring.
Wire Harness Specification:
| Product name |
AMP 2 Pin Superseal Waterproof Wire Harness |
| Connector |
AMP Superseal 1.5 2Pin waterproof plug, yellow rubber seal |
| Conductor Material |
Tinned copper stranded wire |
| Wire Insulation |
PVC / TPE optional |
| Rated Voltage |
12V / 24V automotive |
| Protection Grade |
IP67 waterproof |
| Wire Gauge |
18AWG / 20AWG / 22AWG customizable |
| Length |
100/200/300mm for choice |
| Termination |
One end crimped AMP waterproof connector, wire end stripped & tinned |
| Application |
- Automotive LED lights, fog lights
- Motorcycle & electric scooter power wiring
- Off-road vehicle auxiliary power
- AGV automated guided vehicles
- Lithium battery pack power connection
- Outdoor industrial equipment and machinery
|
| Place of Origin |
Guangdong, China |
Key Features of the Wire Harness:
1. IP67 waterproof seal with yellow rubber gasket, moisture-proof and dust-proof for vehicle outdoor use
2. AMP Superseal 1.5 locking connector, anti-vibration, not easy to fall off
3. Red & black paired wires for clear polarity marking
4. Tinned copper wire core, stable conductivity, anti-oxidation
5. Customizable wire length, wire gauge, male/female connector options
FAQ
Q1: What IP rating does this waterproof connector harness reach?
A: It reaches IP65 protection after male and female fully locked and mated. Not for continuous submersion.
Q2: Can I customize the cable length and wire thickness?
A: Yes. Cable length and wire AWG can be fully customized. Send us your specification for quotation.
Q3: Are both male and female harness available?
A: Yes. We supply male harness, female harness, or matched male + female harness sets.
Q4: Do you accept small batch sample orders?
A: Yes, prototype samples are available for your testing before mass production.
Unitech’s Core Customization Capabilities Include:
Cable Harnesses & Assemblies | Custom Cable Assemblies | Cable Harness Manufacturers | Cable Assemblies | Electrical Harnesses | Cable Assembly Design | Cable Assembly Manufacture | Cable Harness Assembly | Custom Wiring Solutions | Custom wiring solutions manufacturers | Electrical Harness | Cables For Battery | Wires And Connectors | Wiring Harness Manufacturers | Custom Cable | Electrical Harness Manufacturers | Cable Harness Supplier | Cable Connectors
Product Family Tree and Custom Wiring Solutions Range:
We have full series harness cable assembly product for your choice, the connectors are cover brand JST Molex JAE HRS TE Detch or its' equivalent, we can produce:
Custom UL Electronic Wire Harness | Industrial Wire Harness | New Energy Wire Harness | Communication Wire Harness | Consumer Electronics Wire Harness | Medical Wire Harness | Aerospace Wire Harness | Household Appliances Wire Harness | Battery Pack Wire Harness
Important Notes
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
CTA
Contact our sales team to get wholesale quotation, samples and lead time for your Superseal wiring project. Custom harness drawings are acceptable.
