XT60 Battery Connection Cable Assembly | Custom 12WAG XT60 Female to 4.0mm Gold-Plated Banana Plug Charging Cable for RC Hobbyists | Made in China
Unitech Company Introduction:
Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.
Wire Harness Specification:

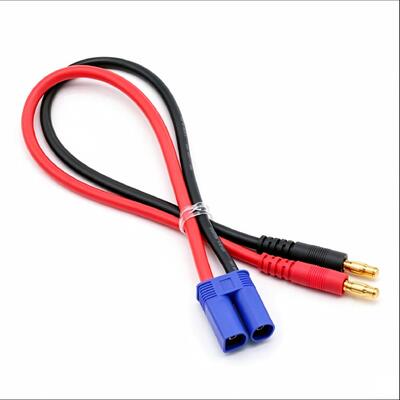

Our XT60 / EC5 to 4mm banana plug charging cable is a widely used RC adapter lead for lipo battery charging. It connects XT60 or EC5 battery plugs to standard 4mm banana ports on balance chargers. We support custom wire gauge, cable length and mixed connector combinations for bulk RC manufacturers and distributors.
| Product Name |
XT60 / EC5 to 4mm Banana Plug Charging Cable Harness |
| Connector |
XT60 Female, EC5 Female |
| Output Plug |
4mm Gold Plated Banana Plug |
| Jacket Material |
Silicone |
| Conductor Material |
Pure copper |
| Wire Color |
Red (+) / Black (-) |
| Size |
12-14WAG or can be customized |
| Length |
300mm or can be customzied |
| Working Temperature |
-60℃ ~ +200℃ |
| Rated Current |
XT60: Max 30A; EC5: Max 50A |
| Application |
Charging LiPo batteries for drones, FPV quadcopters, RC cars/boats/airplanes |
| Place of Origin |
Guangdong, China |
Key Features of the Wire Harness:

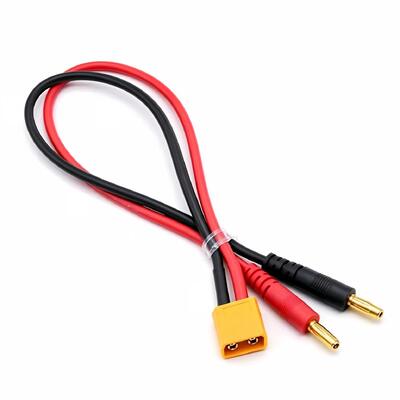

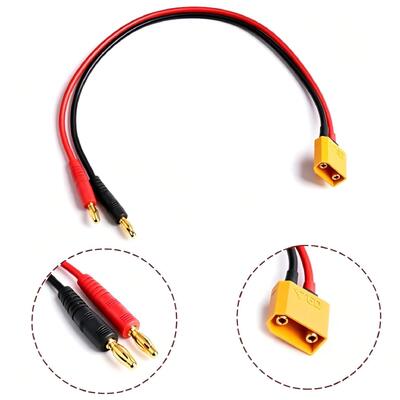

- XT60 Female Connector (Yellow End)
Directly connects to XT60 male-equipped LiPo battery packs for drones, FPV quadcopters, RC cars, and other model vehicles.
As one of the most popular high-current connectors in the RC industry, XT60 supports up to 60A continuous current, matching most mid-power model batteries.
- 4.0mm Gold-Plated Banana Plugs (Red/Black End)
Fits the standard banana plug ports on IMAX B6, B6AC, T6, and other common RC balance chargers.
Gold-plated contacts minimize contact resistance, improving conductivity and reducing heat buildup during charging.
Made of high-temperature resistant silicone wire (typically 12-14AWG), flexible, anti-aging, and durable enough to handle charging current loads.
Red/black color-coded polarity design clearly distinguishes positive and negative terminals, preventing reverse connection damage.
FAQ
Q1: What is the difference between XT60 and EC5 version?
A: XT60 supports maximum 30A, EC5 supports maximum 50A continuous current. EC5 is designed for higher current battery charging. Please select according to your battery charging current requirement.
Q2: Can I customize the cable length and wire gauge?
A: Yes. Custom wire length, wire gauge and cable color are available. Send us your requirement for quotation. Samples can be provided for performance testing.
Q3: Is this cable compatible with most RC lipo chargers?
A: Yes. The 4mm banana plugs fit most mainstream RC balance chargers and laboratory power supplies on the market.
Q4: Are the cables inspected before shipment?
A: Every finished charging cable will go through continuity test and visual inspection before packing, to guarantee good connection and appearance quality.
Unitech’s Core Customization Capabilities Include:
Cable Harnesses & Assemblies | Custom Cable Assemblies | Cable Harness Manufacturers | Cable Assemblies | Electrical Harnesses | Cable Assembly Design | Cable Assembly Manufacture | Cable Harness Assembly | Custom Wiring Solutions | Custom wiring solutions manufacturers | Electrical Harness | Cables For Battery | Wires And Connectors | Wiring Harness Manufacturers | Custom Cable | Electrical Harness Manufacturers | Cable Harness Supplier | Cable Connectors
Product Family Tree and Custom Wiring Solutions Range:
We have full series harness cable assembly product for your choice, the connectors are cover brand JST Molex JAE HRS TE Detch or its' equivalent, we can produce:
Custom UL Electronic Wire Harness | Industrial Wire Harness | New Energy Wire Harness | Communication Wire Harness | Consumer Electronics Wire Harness | Medical Wire Harness | Aerospace Wire Harness | Household Appliances Wire Harness | Battery Pack Wire Harness
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
Contact our sales team for wholesale pricing, samples and custom XT60 / EC5 banana plug cable solutions.
