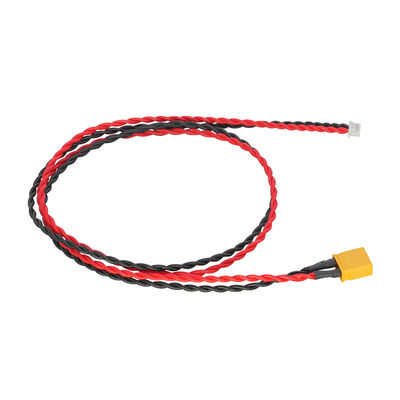

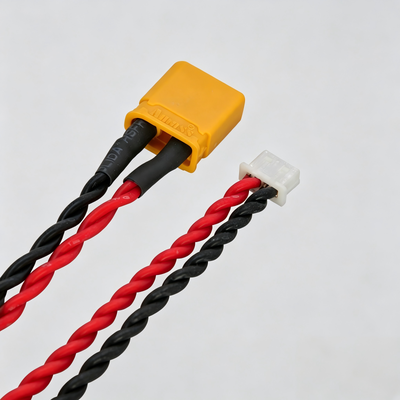

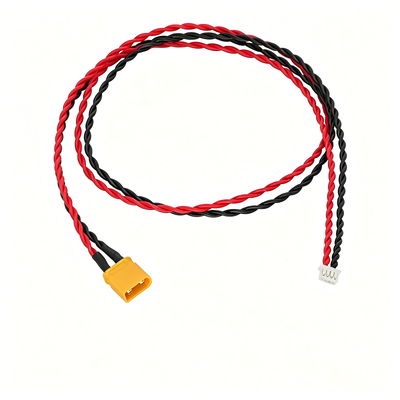

Custom Wiring Harness | XT60 Female to XH2.54 2P Twisted Pair Conversion Cable Assembly for FPV Drone Flight Controller | China Wire Harness Factory

Custom Wiring Harness | XT60 Female to XH2.54 2P Twisted Pair Conversion Cable Assembly for FPV Drone Flight Controller | China Wire Harness Factory

Key Features:​

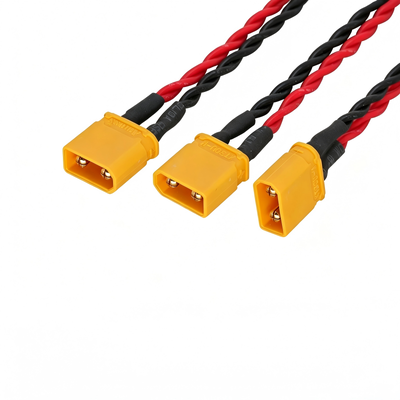

• XT60 Female

1. Model: XT60H Female Socket
2. Shell: Flame-retardant PA66 yellow nylon, heat resistant up to 130°C
3. Terminal: Gold-plated brass, contact resistance ≤0.003Ω
4. Rated Load: Continuous 40A, peak 60A, DC 500V
5. Design: Anti-reverse foolproof slot, built-in anti-drop lock
6. Terminal pull-out force: ≥80N

• XH2.54 2P

1. Pitch: 2.54mm standard spacing, 2-pin female housing
2. Shell: White insulating PA66 plastic with internal anti-loose latch
3. Terminal: Nickel-plated copper
4. Rated Load: Max 5A for auxiliary power & signal transmission
5. Silicone Twisted Wire Specifications
6. Insulation: High elastic silicone rubber
7. Working Temp: -60°C ~ +200°C
8. Conductor: Multi-strand tinned pure copper, ultra-flexible
9. Optional AWG: 14AWG / 16AWG / 18AWG
10. Structure: Red & black tightly twisted pair for noise reduction
11. Bending Life: Over 10,000 bending cycles without wire breakage
12. Custom Length: 10cm–200cm

• Electrical & Compliance Properties

1. Insulation Resistance: ≥1000MΩ
2. Withstand Voltage: 2000V AC / 1min no breakdown
3. Certification: RoHS lead-free eco-friendly material
4. Anti-aging: Oil, acid, UV resistant, no hardening after long-term use

• Customization Options

1. Custom wire gauge and total length
2. Optional tinning treatment for bare wire ends
3. Custom wire color sequence for special orders
4. Bulk OEM & wholesale support

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

Unitech Cable is an outstanding partner for any company that requires custom cable or wire harness assemblies.Our cable assembly and wire harness capabilities support OEMs across multiple sectors. We understand the regulatory, performance, and quality requirements unique to each industry,so that we can meet your requirements.If you want to learn more details please contact us email:Olinda@unitechelectronic.com.

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
