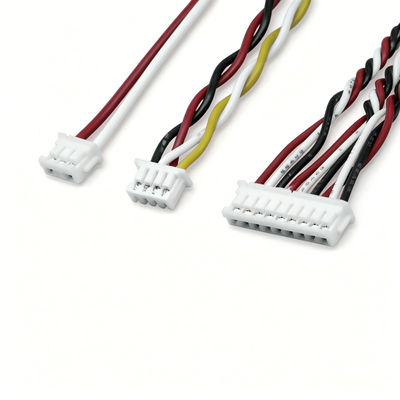

Flexible Custom Wire Harness | OEM XH2.54 UL1007 Twisted Pair Wire Harness for FPV Drone Flight Controller | Wiring Harness Factory Direct
Unitech Company Introduction:
Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com, we will reply in 8 hrs.
| Name |
XH 2.54mm Twisted Pair Signal Wire Harness, Multi-Branch Splitter Cable |
| Standard Model |
UL1007 / UL1061 PVC electronic wire |
| Standard Pitch |
2.54mm standard spacing |
| Wire Gauge |
22AWG / 24AWG / 26AWG |
| Rated Voltage |
300V |
| Rated Temperature Range |
-20°C ~ +80°C |
| Core Craft |
Twisted pair stranding, cold crimp terminals, heat shrink reinforcement |
| Connector Housing |
Flame-retardant PA66 white nylon, built-in lock buckle for anti-drop |
| Terminal Material |
Tinned Pure Copper |
| Key Feature |
Heat shrink reinforcement, cable tie bundling, printed wire marking |
| Application |
FPV drone, RC model: Flight controller, ESC, receiver, encoder signal cables |
| Engineering service |
OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test
2. 100% crimp inspection
3. 100% size inspection
4. 100% visual inspection
|
| Samples |
1.Samples confirmed first before mass production
2.Samples for free
|
| MOQ |
Small Order Can Be Accepted |
| Package |
Inner:plastic bag outer:standard export cartons or custom package |
Key Features:
- Twisted Pair Anti-EMI Structure
Two different colored wires interwoven to counteract electromagnetic interference, suppress signal noise, ideal for weak differential signal transmission.
- Custom Multi-Branch Splitter Layout
Support one main cable split into multiple independent twisted sub-cables, single main board connects several sensors/modules simultaneously.
- Reinforced Branch Protection
Heat shrink tube wrapped at wire split point, improve tensile strength, withstand frequent bending without wire breakage.
- Standard XH Quick Plug Design
Universal XH connector matches mainstream PCB pin headers, plug-and-play without extra welding.
Distinct red/black/white/yellow/blue wires to separate power, signal and ground circuits, reduce wiring mistakes.
Automatic cold crimp process, tight combination between terminal and copper wire, no loose strands during vibration.
Lead-free tin plating and non-toxic PVC, compliant with RoHS for consumer & industrial electronics.
We can produce series of wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
