Custom Wiring Harness | Custom UL1007 Figure 8 2Pin Male Plug to XH2.54 2P Terminal Power Conversion Wire Harness for Portable Monitoring Device | China OEM Manufacturer
| Name |

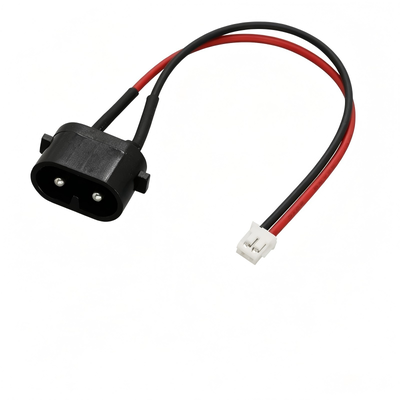

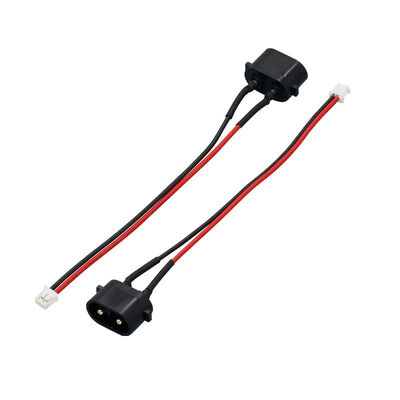

IEC C8 2-Pin Figure 8 Male Plug To XH2.54 2P Terminal Power Wire Harness |
| Power Connector |

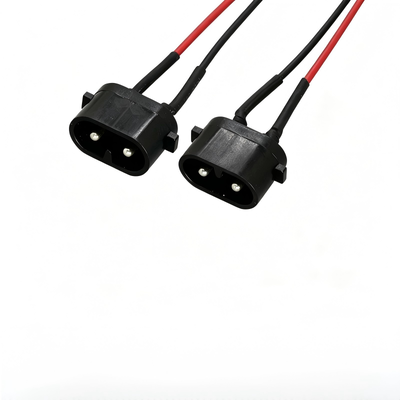

Black plastic figure 8 male plug, 2 metal conductive pins |
| Small Terminal Connector |

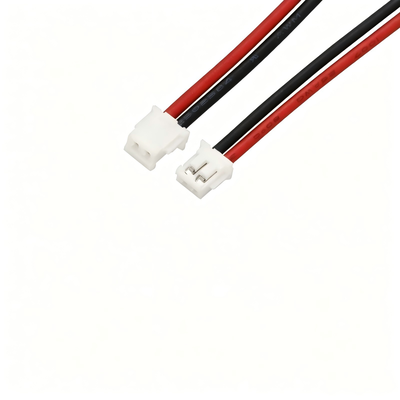

XH 2.54mm pitch white 2P lock housing |
| Working Temperature |
-20℃ ~ +80℃ |
| Wire Model |
UL1007 PVC electronic wire, red positive / black negative |
| Rated Voltage |
300V |
| Application |
Power Inverter & Frequency Converter,New Energy Testing Equipment,Intelligent Mechanical Equipment |
| Engineering service |
OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test
2. 100% crimp inspection
3. 100% size inspection
4. 100% visual inspection
|
| Samples |
1.Samples confirmed first before mass production
2.Samples for free
|
| MOQ |
Small Order Can Be Accepted |
| Package |
Inner:plastic bag outer:standard export cartons or custom package |
Key Features:
- Dual connector conversion design
Convert standard figure 8 power input to XH 2.54 board terminal, realize quick power connection for small equipment internal circuit.
- Clear positive-negative color coding
Red and black separate power polarity, avoid reverse wiring damage to circuit boards.
- Double insulation & reinforced joint

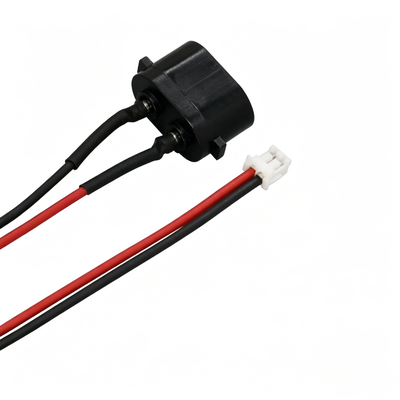

Heat shrink tube wrapped at wire and plug connection point, tensile resistant, extend service life.
- Universal compatible connectors
Figure 8 plug matches common household power female socket; XH terminal widely fits PCB pin headers for electronic devices.
- Compact flexible short wire
Small occupied space, easy wiring inside narrow shell of instrument and small appliances.
- Environment-friendly material
All wire and plastic parts meet RoHS standard, safe for consumer electronics export.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
Customized electrical wire harness connectors: we produce custom solutions for all industries and applications
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
All Wire Harnesses will be custom made as your drawing ans specifications
Sample Prototype, Trial Order will be welcome!
Unitech Cable is an outstanding partner for any company that requires custom cable or wire harness assemblies.Our cable assembly and wire harness capabilities support OEMs across multiple sectors. We understand the regulatory, performance, and quality requirements unique to each industry,so that we can meet your requirements.If you want to learn more details please contact us email:Olinda@unitechelectronic.com.
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
