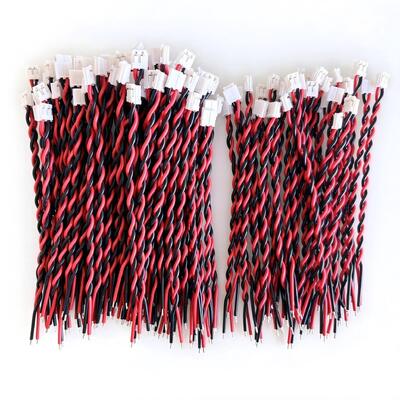

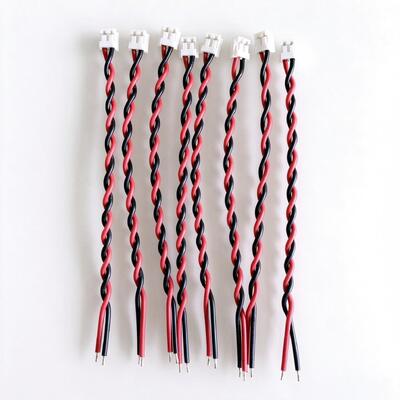

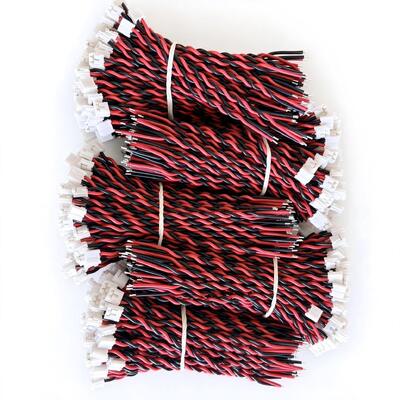

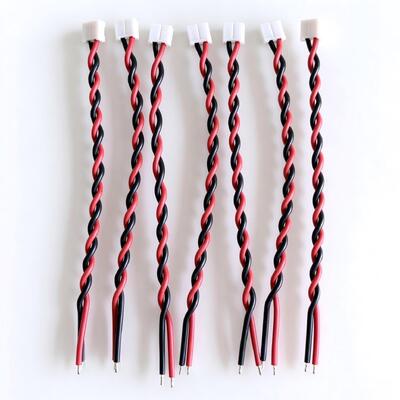

Bespoke JST EHR-2P 22AWG Twisted Red Black Wire Harness for Battery & Electronics

Wholesale 2P JST Twisted Red Black Wire Harness, 2 Pin Anti-Interference Power Cable Assembly with Pre-Stripped Tinned Ends for Lithium Battery Pack and Sensor Wiring | Monthly Supply Wire Harness





Custom Wire Harness Manufacturer

Our custom wire harness and cable assembly solutions provide precision and dependable performance for critical industrial wiring applications. With advanced production processes and strict adherence to industry standards, we manufacture high-quality, cost-effective connector cables and nickel tab battery harnesses built for demanding specifications. Rigorous testing and full traceability guarantee stable, consistent quality, delivering reliable cable assemblies to support your engineering projects.

If you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.



Wire Harness Attributes

ur JST EHR-2P twisted wire harness adopts original JST EH series 2.5mm pitch connector, paired with UL1007 #22AWG red & black twisted stranded wire. Twisted structure reduces electromagnetic interference. Wire length is 108mm excluding housing, wire ends pre-stripped and tinned 3mm for easy soldering to PCB or battery tabs.



Key Benefits of the Wire Harness


1. Original JST EH series connector: Housing EHR-2, crimp terminal SEH-001T-P0.6, 2.5mm pitch, rated 3A / 250V, stable locking, easy plug & unplug.

2. UL1007 #22AWG stranded copper wire, red-black twisted pair design, suppress EMI, ideal for power and low-frequency signal transmission.

3. Fixed wire length: 108mm (exclude connector housing); wire tail stripped and tinned 3mm, prevents wire strand fraying, convenient soldering.

4. Standard specs for mass production; custom length, AWG, insulation material available on request.

5. RoHS compliant, compact thin housing design, suitable for high-density PCB assembly.



Customization Capability

Our custom wire harness and cable assembly customization covers electrical and mechanical parameters for industrial equipment integration. We adjust tinned copper conductors to meet your target current ratings, and select insulation materials to withstand harsh working environments. You may specify connector combinations, strain relief designs, shielding structures and cable tolerances to fit your enclosure layout. We also provide optional processing such as overmolding, lacing and serialized marking. All custom wire harness designs go through design review before production, supporting small pilot runs and scalable mass production for OEM projects.


FAQ

Q1: What is the advantage of this twisted pair wire harness?

A: The red-black twisted structure suppresses electromagnetic interference (EMI). It delivers stable power and low-frequency signal transmission, ideal for battery modules and sensor wiring.

Q2: Can we customize the wire gauge, total length and insulation material?

A: Yes. We support custom AWG, cable length, PVC or silicone insulation, as well as different connector alternatives for your wiring project.

Q3: Is this 2P connector fully compatible with original JST connectors?

A: It is JST-style compatible housing. If you require full interchangeability, send us the exact JST part number for matching.

Q4: Are the wire ends pre-tinned?

A: Yes. The leads are pre-stripped and tinned, ready for direct soldering to PCBs, battery tabs or terminals.

Q5: Is this wiring harness RoHS compliant?

A: All our cable assemblies meet RoHS standards, suitable for electronic, lithium battery and industrial equipment applications.

Q6: What is the MOQ for bulk order?

A: MOQ is negotiable. We also offer sample service for performance testing before mass production.

Send your specifications or drawings for quotation. Custom 2P twisted wire harness for battery and electronic bulk projects.
