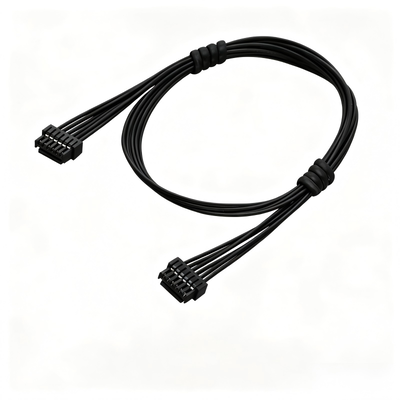

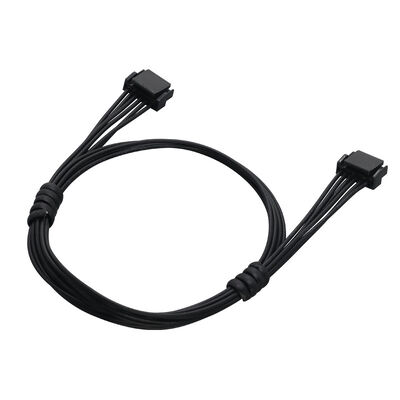

Custom Wiring Harness | Custom Double End SM 2.54mm Male Female Latching Connector Wiring Harness for LED Light Drone Circuit Board | China Wiring Harness Factory

Custom Wiring Harness | Custom Double End SM 2.54mm Male Female Latching Connector Wiring Harness for LED Light Drone Circuit Board | China Wiring Harness Factory

Key Features:​

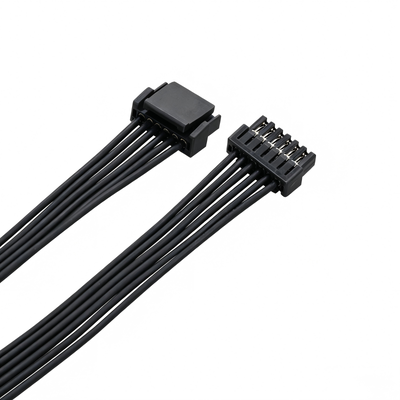

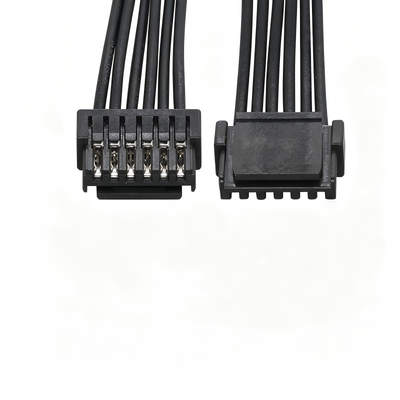

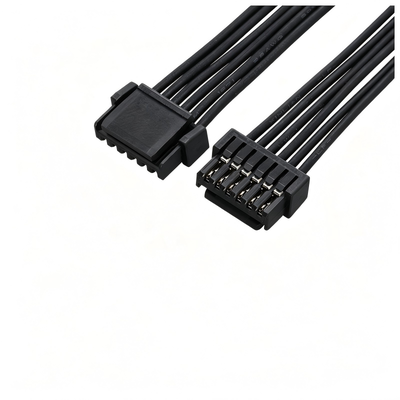

• SM Plastic Male & Female Connectors

1. Housing: Black flame-retardant PA66 plastic, matte wear-resistant surface, integrated elastic lock buckle to prevent loosening during vibration
2. Contact pins: Tin-plated copper terminals, low contact resistance, anti-oxidation, stable low-voltage signal transmission
3. Pitch: Standard 2.54mm SM pitch; customizable pin counts 2P/3P/4P/5P/6P/8P
4. Mating structure: Male-female interlocking design for quick plug-and-play

• Signal Wire Body

1. Insulation: Ultra-thin black PVC single-strand signal wire, soft and slim, easy to route inside compact equipment
2. Conductor: Multi-strand tinned copper inner core, flexible bending, not easy to break
3. AWG options: 24AWG / 26AWG / 28AWG thin gauge for space-limited internal wiring
4. Processing: Wire terminals are precisely crimped into connector pins without loose strands; rubber rings bind the wire bundle to avoid messy wiring

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

Unitech Cable is an outstanding partner for any company that requires custom cable or wire harness assemblies.Our cable assembly and wire harness capabilities support OEMs across multiple sectors. We understand the regulatory, performance, and quality requirements unique to each industry,so that we can meet your requirements.If you want to learn more details please contact us email:Olinda@unitechelectronic.com.

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
